Firm's Kalyan

We facilitate bringing

Your dream of Luxury living now becomes a reality!

Firm's Kalyan

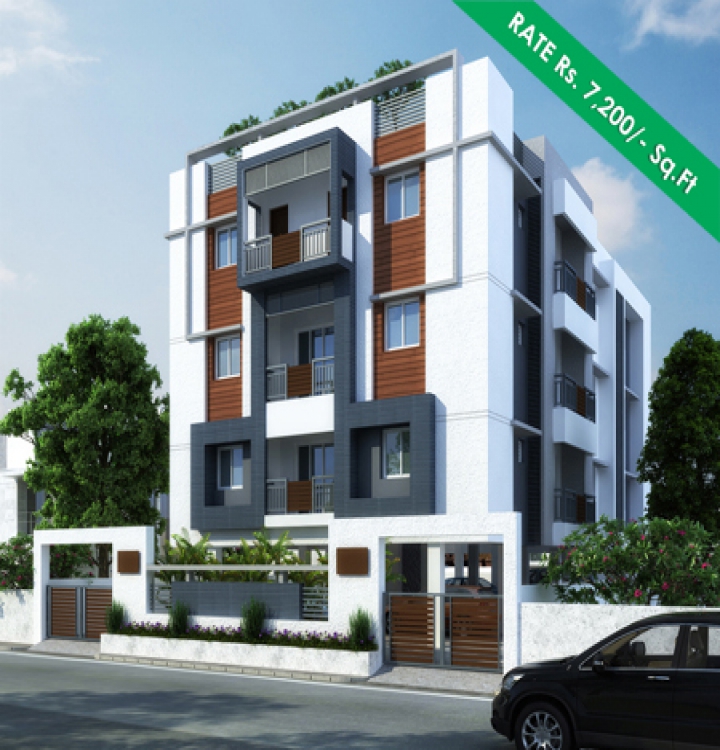

FIRM'S KALYAN is another land mark property including construction of Stilt plus three floors 6 Premium Residential three bed room apartments with modern amenities. The building will be constructed at Door No.23, Plot No.742, W- Block, 4th Avenue, Anna Nagar Western Extn., Chennai- 600 101.

STRUCTURE

R.C.C framed structure with Brick/ Fly ash/ Cement Block walls plastered and finished with Two Coats of Cement based Putty, with one coat of primer and two coats of Asian Royale Emulsion. Ceiling surfaces of the apartments will be given one coat of cement paint on the RCC surface and 12mm gypsum bond false ceiling with galvinised iron section supports. Joint will be taped with touchup putty and finished with one coat of primer and two coats of White colour Premium Emulsion.

JOINERY

a. Main door: First Quality Burma Teak both frame and shutters (Panel door) Polished both sides with melamine spray.

b. Other doors:  Will be deep-moulded compressed wood fibre raised panel doors, strengthened with pre-selected kiln dried rails and stiles, with a grain effect etched in the panel with teak frames, both sides polished with melamine spray. All door frames will be teak frames. Toilet doors will be painted Kassa Smart ABS doors.

c. Windows:  All windows will be UPVC windows, with plain glass panels and Bright Bar grills.

d. Ventilator: Toilet ventilators will be with aluminium adjustable louvers with inbuilt provision for exhaust fan.

FLOORING

Flooring for the Living/ Dining area alone will be laid with RAK/ equivalent 4x2 tiles @ Rs.200/Sft. The Master Bedroom floor alone will be done with laminated wooden flooring @ Rs.100/Sft and Vitrified tile flooring (24” x 24”) from Nitco/ Asian/ Oreva/ Equivalent, plain colours @ Rs.60/Sft, for the rest of the flat ( other bedrooms, kitchen, balconies and passages) with 4” high skirting.

KITCHEN

Polished Black galaxy granite slab over cooking platform, Franke/NIRALI/ equivalent Stainless steel sink with drain board and plain glazed tiles (10" x 14", 12"x 16", 12"x 18") upto 2’ height above the platform. Shelves will be provided with black granite slabs.

TOILETS

Plain ceramic tile flooring, ceramic printed/ plain tile dado, upto 7’ height  from floor, concealed plumbing arrangements. TOTO/ Parryware Cascade NXT/equivalent wall mounted model White closets with concealed tank provided in all bathrooms.  Half turn foam flow taps and fittings MARC or Equivalent for all toilets. Each toilet shall be provided with one water closet, one wash basin, one divertor, One tipton and shower rose, one health faucet, pillar cock & angle valve for wash basin and 20 mm concealed stop cock. A towel rod and 12”glass corner soap tray will be provided in each toilet.

SANITARYWARES & FIXTURES

Parryware Cascade NXT/equivalent wall mounted model White closets provided in all bathrooms. Half turn foam flow taps and fittings MARC or Equivalent for all toilets. Each toilet shall be provided with one water closet, one wash basin, one divertor, One tipton and shower rose, one health faucet, pillar cock & angle valve for wash basin and 20 mm concealed stop cock. (2’6” x 2’6”) Counter wash basin will be provided in any 2 toilets). A towel rod and 12”glass corner soap tray will be provided in each toilet.

ELECTRICAL

Three phase electric supply connection with a separate Manual Three phase changeover switches inside each flat and wiring will be of copper fire retardant cables concealed in PVC conduits. MINIATURE CIRCUIT BREAKERS & RCCB (Residual Current Circuit Breaker) will be provided Switches will be Modular Type mounted on metal boxes from MK INDIA Blendz/ EQUIVALENT. Provision for Split A/C in all bedrooms and living room. TV and Telephone points will be provided in Living and all bedrooms.

CHEMICAL EARTHING

Done for the building by digging 3m deep bores inserted with hot dipped galvanized dual pipes, filled with high conductive and corrosion resistant crystalline mixture and backfill compound around the electrodes.

WATER SUPPLY

Corporation and borewell water supply in the kitchen, service and bathrooms.

LIFT

A SIXPassenger  MS AUTO DOORLIFTwill be provided from EMPEROR/ KONE/JAYABHARAT/ equivalent

GENERATOR

40 KVA Standby Generator with from Ashok Leyland/Kirloskar with alternator, sound proof enclosure, control panel, change over panel and earthing etc., will be provided to support lift, common area lights, Mono bloc and jet pump and light and fan points inside the apartment. A/c’s and geysers and plug points will not be connected to the Generator.

ORNAMENTAL CORNER MOULDS

Will be fitted at Living cum dining ceiling corner areas.

VIDEO DOOR PHONE

One Video Door phone will be provided for each apartment.

SPECIAL WEATHER PROOFING

Special weathering proof treatment will be done to the mother terrace to reduce the heat on the top floor.

PIPED GAS

 Provision for piped gas from the ground floor will be provided.

SPECIAL AMENITIES

Special amenities as per individual requirement at extra cost.

Stilt Plan

https://firmfoundations.in/projects/floorplans/thumbnails/14401580026STILT_FLOOR_PLAN_-_Copy.jpg

First Floor

https://firmfoundations.in/projects/floorplans/thumbnails/14401579900TYPICAL_FLOOR_PLAN_-_Copy.jpg

Door No.23, Plot No.742,
W- Block, 4th Avenue,
Anna Nagar Western Extn.,
Chennai- 600 101.

https://firmfoundations.in/projects/location/thumbnails/14533782067Keyplan.jpg
FLOOR FLAT AREA ( IN SQ. FEET) AVAILABILITY
First Floor Flat No.1 1600
First Floor Flat No.2 1275
Second Floor Flat No.1 1600
Second Floor Flat No.2 1275
Third Floor Flat No.1 1600
Third Floor Flat No.2 1275
PAYMENT SCHEDULE
At the time of BOOKING Land cost +Two Regis Charge + 20% of Construction cost
On completion of BASEMENT 10% of Construction cost
On completion of GROUND FLOOR ROOF 10% of Construction cost
On completion of FIRST FLOOR ROOF 10% of Construction cost
On completion of SECOND FLOOR ROOF 10% of Construction cost
On completion of THIRD FLOOR ROOF 10% of Construction cost
On completion of BRICK WORK of your flat 10% of Construction cost
On completion of INTERNAL PLASTERING of your flat 10% of Construction cost
On completion of TILE LAYING of your flat 7% of Construction cost
On HANDING OVER POSSESSION 3% of Construction cost
