FIRM'S DWARAKA is another land mark property including construction of Stilt plus three floors 6 Premium Residential two & three bed room apartments with modern amenities. The building will be constructed at T-Block,No.33, Anna Nagar, Chennai-600040
STRUCTURE
R.C.C framed structure with Brick/ Solid Block/ Cement Block walls plastered and finished with Two Coats of Cement based Putty, with one coat of primer and two coats of Asian Royale Emulsion/Equivalent. Ceilings will be plastered and finished with Two Coats of Cement based Putty, with one coat of primer and two coats of Asian Premium Plastic Emulsion/ Equivalent.
JOINERY
a. Main door: First Quality Burma Teak both frame and shutters (Panel door) Polished both sides with melamine spray.
b. Other doors: will be deep-moulded compressed wood fibre raised panel doors, strengthened with pre-selected kiln dried rails and stiles, with a grain effect etched in the panel with first quality teak frames, both polished with melamine spray. All door frames will be teak frames. Toilet doors will be painted FRP doors.
c. Windows: All windows will be teak wood windows, polished from inside and painted from outside, with glass panels (pinhead glass) and Bright Bar grills.
d. Ventilator : Toilet ventilators will be with aluminium adjustable louvers with inbuilt provision for exhaust fan.
FLOORING
a. Flooring for the Living/ Dining area alone will be laid with Granite @ Rs.200/Sft.
b. The Master Bedroom floor alone will be done with laminated wooden flooring @ Rs.100/Sft
c. Vitrified tile flooring (24” x 24”) from Nitco/ Asian/ Oreva/ Equivalent plain colours @ Rs.50/Sft, for the rest of the flat ( other bedrooms, kitchen, balconies and passages) with 4” high skirting.
KITCHEN

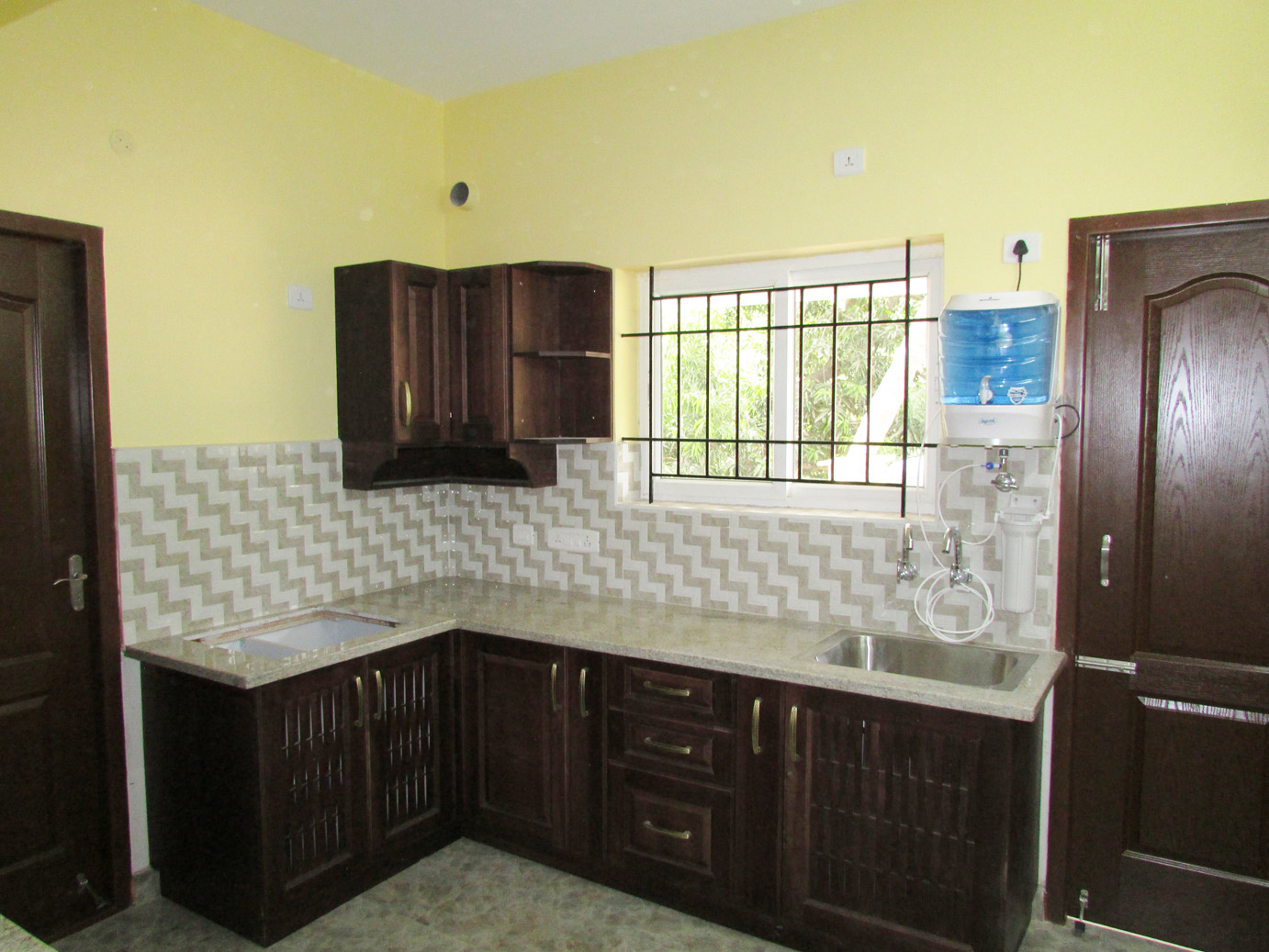

Polished Black galaxy granite slab over cooking platform, Franke/NIRALI/ equivalent Stainless steel sink with drain board and plain glazed tiles (10 x 14) upto 2’ height above the platform. RO plant with 10 litres/hour output will be provided for individual flats in the kitchen. A Garbodrain for the kitchen sink will be provided.
TOILETS
Plain ceramic tile flooring, ceramic printed/ plain tile dado, for about 7’0” height from floor, concealed plumbing arrangements.
SANITARYWARES & FIXTURES
Parryware Cascade NXT/equivalent wall mounted model White closets provided in all bathrooms. Half turn foam flow taps and fittings MARC or Equivalent for all toilets. Each toilet shall be provided with one water closet, one wash basin, one divertor, One tipton and shower rose, one health faucet, pillar cock & angle valve for wash basin and 20 mm concealed stop cock. (2’6” x 2’6”Counter wash basin will be provided in any 2 toilets). A towel rod and 12”glass corner soap tray will be provided in each toilet.
ELECTRICAL
Three phase electric supply connection with a separate Manual Three phase changeover switches inside each flat and wiring will be of copper fire retardant cables concealed in PVC conduits. MINIATURE CIRCUIT BREAKERS & RCCB (Residual Current Circuit Breaker) will be provided and switches will be Modular Type mounted on metal boxesfrom MK INDIA Blendz/ EQUIVALENT. Provision for A/C in all bedrooms. TV and Telephone points will be provided in Living and all bedrooms.
CHEMICAL EARTHING
Done for the building by digging 3m deep bores inserted with hot dipped galvanized dual pipes, filled with high conductive and corrosion resistant crystalline mixture and backfill compound around the electrodes.
WATER SUPPLY
Corporation and borewell water supply in the kitchen, service and bathrooms.
LIFT
A SIX Passenger AUTO DOOR LIFT will be provided from EMPEROR/ Equivalent.
GENERATOR
Standby Generator with alternator, sound proof enclosure, control panel, change over panel and earthing etc., will be provided to support the lift, common area lights, motors, and lights & fan points inside the flats.
ORNAMENTAL CORNER MOULDS
will be fitted at Living cum dining ceiling corner areas.
ACCESS CONTROL
with swipe cards, with a door for the ground floor lobby will be provided.
SPECIAL WEATHER PROOFING
Treatment will be done to the mother terrace to reduce the heat on the top floor.
FIRE EXTINGUISHER
1kg CEASE FIRE will be provided for each flat.
SPECIAL AMENITIES
Special amenities as per individual requirement at extra cost.
| FLOOR | FLAT | AREA ( IN SQ. FEET) | AVAILABILITY |
|---|---|---|---|
| First Floor | Flat No.1 | 1350 | |
| First Floor | Flat No.2 | 950 | |
| Second Floor | Flat No.1 | 1350 | |
| Second Floor | Flat No.2 | 950 | |
| Third Floor | Flat No.1 | 1350 | |
| Third Floor | Flat No.2 | 950 |
| PAYMENT SCHEDULE | |
|---|---|
| At the time of BOOKING | Land cost + Regis Charge + 5% of Construction cost |
| On completion of BASEMENT | 15% of Construction cost + Corpus |
| On completion of GROUND FLOOR ROOF | 15% of Construction cost |
| On completion of FIRST FLOOR ROOF | 15% of Construction cost |
| On completion of SECOND FLOOR ROOF | 15% of Construction cost |
| On completion of THIRD FLOOR ROOF | 15% of Construction cost |
| On completion of BRICK WORK of your flat | 7% of Construction cost |
| On completion of INTERNAL PLASTERING of your flat | 5% of Construction cost |
| On completion of TILE LAYING of your flat | 5% of Construction cost |
| On HANDING OVER POSSESSION | 3% of Construction cost |
