Firm's Dwarakesh

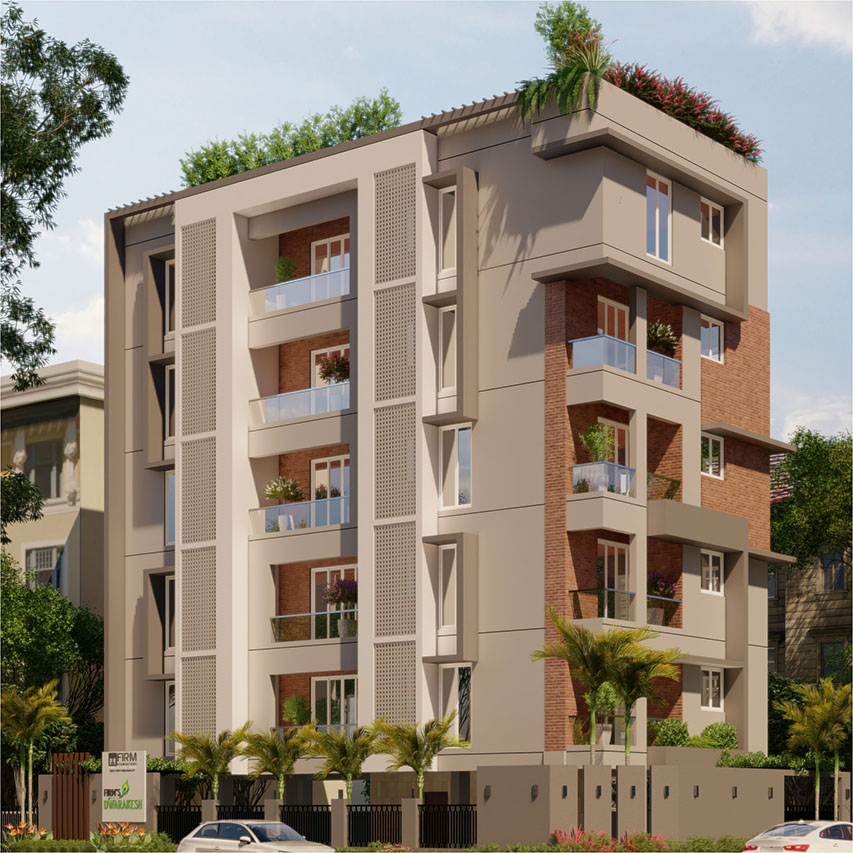

FIRM'S Dwarakesh is another property including construction of Stilt plus five floors Premium Residential apartments with modern amenities. The building will be constructed at NO.10, E-BLOCK, 1ST STREET, ANNA NAGAR EAST, CHENNAI- 102

SPECIFICATIONS

1. STRUCTURE:

R.C.C framed structure with Brick/ Fly ash bricks/ cement blocks walls plastered and finished with Two Coats of Cement based Putty, with one coat of primer and two coats of Asian Premium Emulsion. Ceiling surfaces of the apartments will be given one coat of cement paint on the RCC surface and 12mm gypsum board false ceiling with galvanized iron section supports. Joints will be taped with touchup putty and finished with one coat of primer and two coats of White colour Premium Emulsion (Asian/Berger).

2. FLOORING:

Flooring for the Living/ Dining area alone will be laid with Kajaria/ Somany/ equivalent

4x2 tiles @ Rs.100/Sft (light colour). The Master Bedroom floor alone will be done with

laminated wooden flooring @ Rs.100/Sft. Vitrified tile flooring 24” x 24” (@Rs.50/- per

s.ftfromKajaria/ Somany/ Nitco/Equivalent plain colours, for the rest of the flat

(bedrooms, kitchen, balconies and passages) with 4” high skirting.



3. KITCHEN

RCC slab with Black galaxy granite top (18 mm thickness) with  Nirali/ equivalent make

Stainless Steel sink (36”x20”) and drain board. 12” x 18” or 12”x 16” (@Rs.50/Sft plain

colour glazed tiles of KAJARIA/ SOMANY/ SONARA upto ceiling height above platform

will be provided. Shelves with Black Granite slabs will be provided in the Kitchen.

Electrical points for mixie, grinder, microwave, electric chimney, washing machine,

fridge, and exhaust fan will be provided. RO with 10 litres/hour output will be

provided for individual flats in the kitchen.



4. TOILETS:

Designer toilets with duo- coloured ceramic tiles and glazed tile dado uptoceilingheight

for the walls. Tile sizes will be 12” x 18”/ 10” x 16”/ 12’ x 16” from KAJARIA/ SOMANY/

EQUIVALENT(@Rs.50/Sft. Plain ceramic antiskid tile flooring of size 12” x 12”

(@ Rs.40/Sft) from KAJARIA/ SOMANY/ SONARA/ EQUIVALENT will be provided. A

towel rod and 12” glass corner soap tray will be provided in each toilet.



5. JOINERY

a. Main door: First Quality AfricanTeak both frame and shutters (Panel door) Polished both sides with melamine spray.

b. Other doors: will be deep-moulded compressed wood fibre raised panel doors, strengthened with pre-selected kiln dried rails and stiles, with a grain effect etched in the panel with first quality teak frames, painted on both sides.Toilet Doors will be Kassa smart ABS  pre painted doors.

c. Windows: All windows will be of UPVC (Un plasticized Poly vinyl chloride)   with 5mm glass panels and required accessories for locking with Bright bar grills embedded in the wall.

d. Ventilator: Toilet ventilators will be with adjustable aluminiumlouvres with inbuilt provision for exhaust fan.

Godrej Locks will be provided for all bedroom doors and main door.

6. One RCC loft will be provided in each bedroom and Kitchen.



7. ELECTRICAL :

Three phase electric supply connection with a separate Manual Three phase

changeover switches inside each flat and wiring will be of copper fire retardant cables

concealed in PVC conduits. MINIATURE CIRCUIT BREAKERS & RCCB will be

provided and switches will be  Legrand / Equivalent model mounted on metal boxes.

Split A/C provision in all bedrooms and living room. TV points will be provided in the

living room and master bedroom and Telephone points will be provided in Living and

all bedrooms.



8. SANITARY AND PLUMBING

Toilet concealed plumbing lines and fittings will be CPVC (Chlorinated Polyvinyl

Chloride) and external water line pipes and fittings will be UPVC (Un Plasticized Poly

Vinyl Chloride Cascade wall mounted NXT closet/ KOHLER /CERA/ Equivalent closets

with exposed tanks provided in all toilets with health faucets. Taps and other fittings –

KOHLER/ Equivalent make CP fittings. Each toilet shall be provided with one water closet, one wash basin, one wall mixer, shower rose, one health faucet, pillar cock & angle valve for wash basin and 20 mm concealed stop cock.

9. WATER TANK

Water tank for metro water and borewell water shall be provided, in masonry or RCC.



10. UNDERGROUND SUMP

15000 litrescapacity under ground sump shall be constructed for storing metro water.

11. CHEMICAL TREATMENT(Water Proofing treatment)

For toilets and mother terrace.

12. ANTI TERMITE TREATMENTwill be done in the required stages.

13. WEATHERING COURSE

1’0” waterproofing treatment done in the joint between terrace floor slab and parapet

wall and this portion is packed with chips to safeguard the waterproof. Proper

weathering care shall be done with brick jelly, lime concrete and laid with pressed tiles

with proper pointing and slope. Lime used will be pre packed Powder lime instead of

stone lime.  INSULLA TILES is used to do weather proofing for the mother terrace to

reduce the heat in the top floor.



14. LANDSCAPING

Plants will be provided around the building



15. A Six passenger Auto door (V3F) MS Lift from EMPEROR/ EQUIVALENT with Auto rescue device will be provided. Lift will be provided upto the terrace.

16. GENERATOR – 40 KVAstandby Generator from Ashok Leyland/ Kirloskar with alternator, sound proof enclosure, control panel, change over panel and earthing etc., will be provided to support lift, common area lights, Mono bloc and jet pumps, A/c’s, lights and fan points only inside the flats.

17. Provision for piped gas in the ground floor will be provided.

18. ACCESS CONTROLsystem at entry level will be provided.

19. COMMON POINTS

  • Adequate light points in stairs, Terrace, compound walls, points will be provided.
  • SS Handrails will be provided for the common staircase.
  • EB and phones cables from the road to the mains inside the building will be laid through PVC pipes.
  • Compound walls upto 5’ from finished floor level at required places with gate pillars and Two gates will be provided.
  • Name board will be provided in the car park area.
  • Seating arrangements will be provided in the car park area and terrace.
  • A Party table with a wash basin will be provided in the terrace.
  • Pandal rings will be provided in the terrace.
  • Setbacks and carpark will be finished with interlocking concrete paving blocks.
  • Rain water Harvesting shall be done.
  • Separate Servant Room and Servant toilet will be provided.
  • Elegant elevation features will be provided.
  • Elegant Lobby space in the Ground Floor will be provided.
  • Stairways and landing flooring will be done with granite.
  • Granite on window sill and    balcony sill will be provided.
  • CCTV cameras will be provided in the common areas.

Stilt Floor

https://firmfoundations.in/projects/floorplans/thumbnails/16485569664Dwa_Stilt.jpg

Typical Floor

https://firmfoundations.in/projects/floorplans/thumbnails/16485569783Dwa_Typi.jpg

NO.10, E-BLOCK, 1ST STREET, ANNA NAGAR EAST, CHENNAI- 102

https://firmfoundations.in/projects/location/thumbnails/16485567451Dwarakesh_Loca.jpg
FLOOR FLAT AREA ( IN SQ. FEET) AVAILABILITY
First Floor Flat A 1675
Second Floor Flat A 1675
Third Floor Flat A 1675
Fourth Floor Flat A 1675
Fifth Floor Flat A 1675
PAYMENT SCHEDULE
At the time of BOOKING 15%
At the time of REGISTRATION 15%
On completion of BASEMENT 10%
On completion of GROUND FLOOR ROOF 7%
On completion of FIRST FLOOR ROOF 7%
On completion of SECOND FLOOR ROOF 7%
On completion of THIRD FLOOR ROOF 7%
On completion of FOURTH FLOOR ROOF 7%
On completion of FIFTH FLOOR ROOF 7%
On completion of BRICK WORK of your flat 5%
On completion of INTERNAL PLASTERING in your flat 5%
On completion of TILE LAYING in your flat 5%
On HANDING OVER POSSESSION 3%
