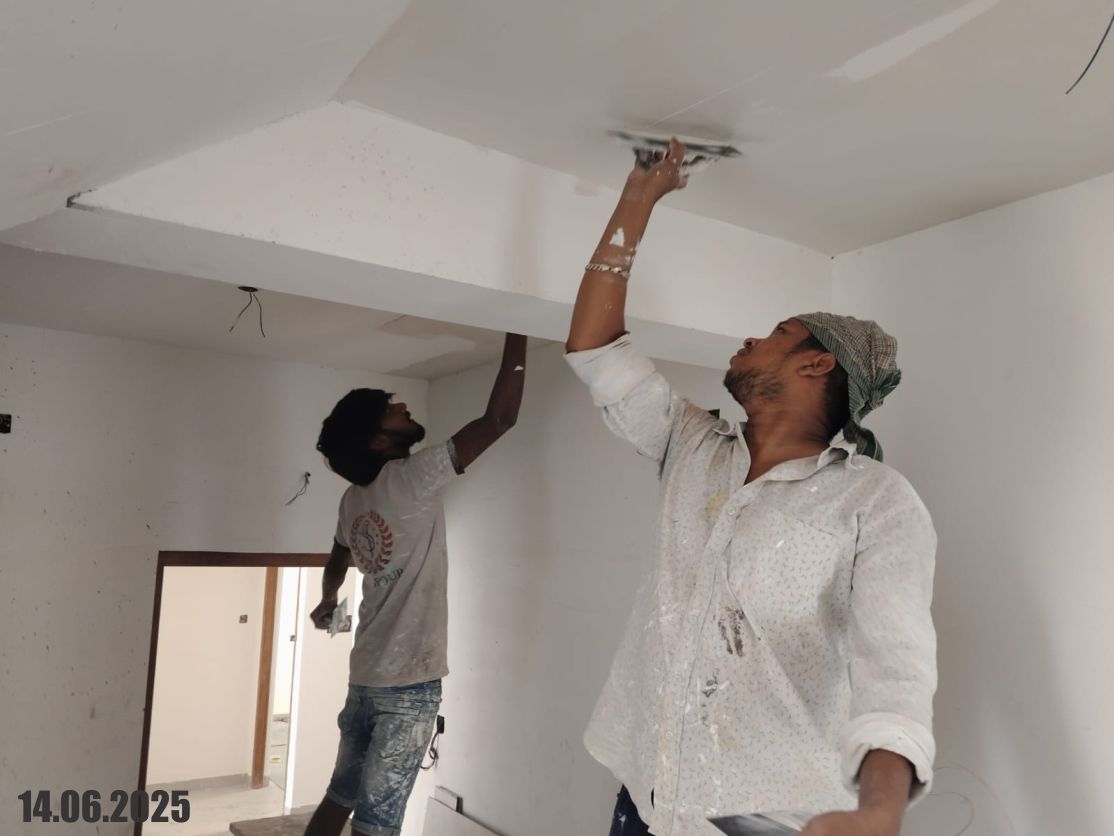

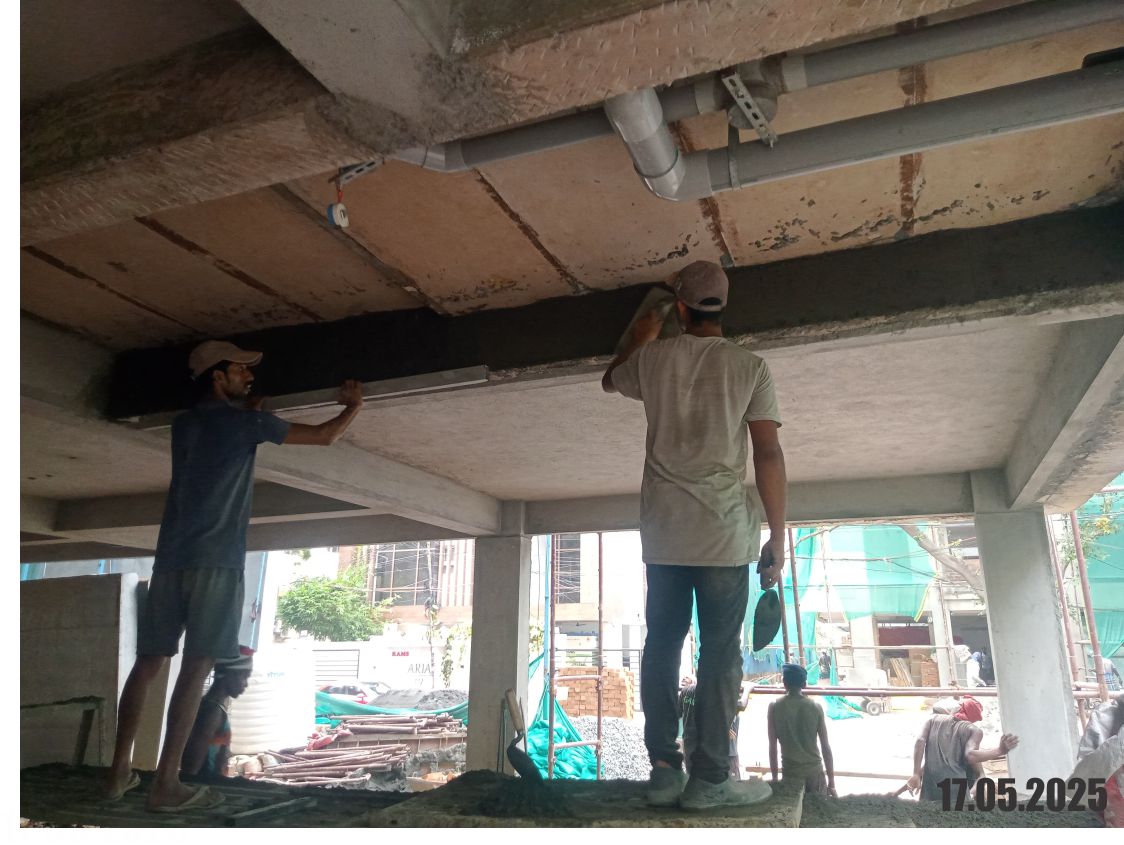

R.C.C framed structure with Brick/ Fly ash walls plastered and finished with Two Coats of Cement based Putty, with one coat of primer and two coats of Asian Premium Emulsion. Ceiling surfaces of the apartments will be given one coat of cement paint on the RCC surface and 12mm gypsum bond false ceiling with galvanized iron section supports. Joint will be taped with touchup putty and finished with one coat of primer and two coats of White colour Premium Emulsion.

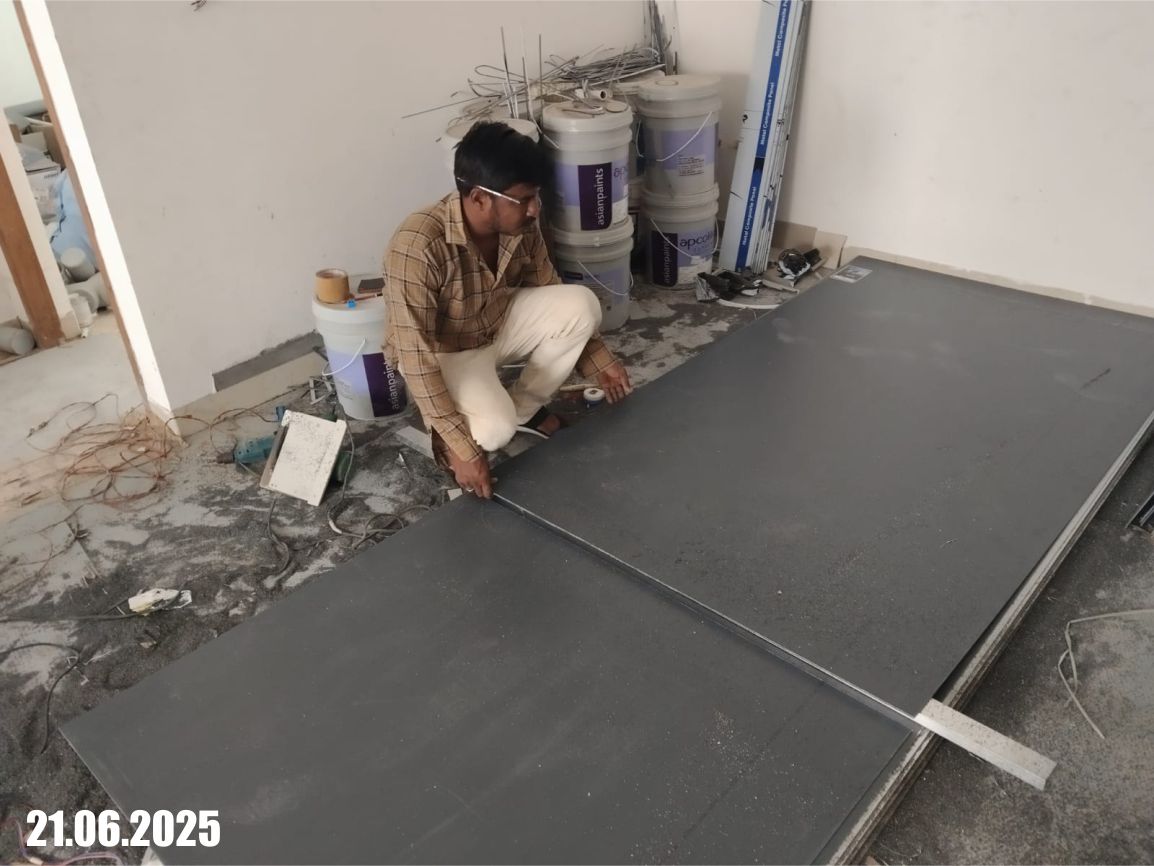

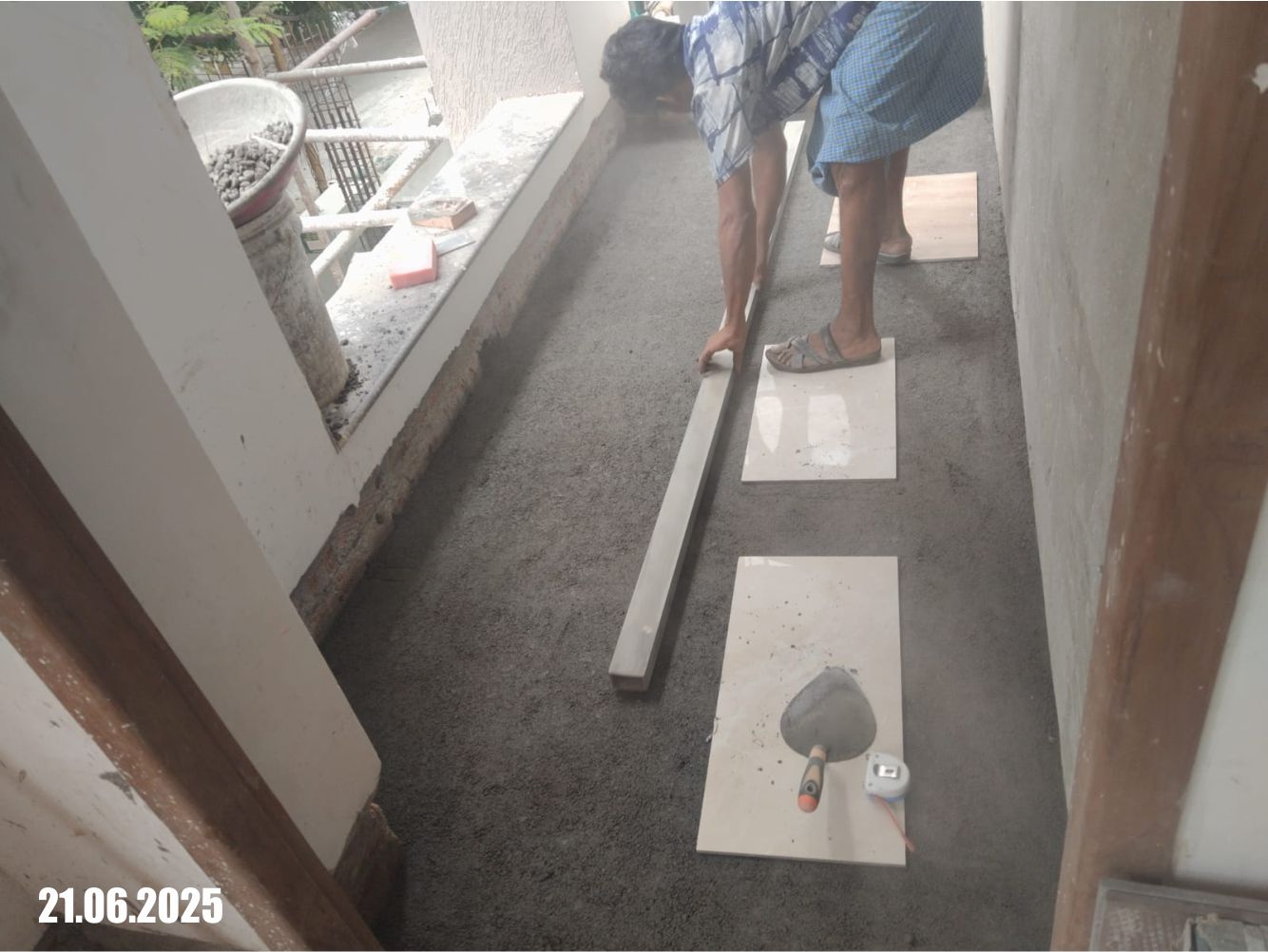

Flooring for the Living/ Dining area alone will be laid with 4x2 KAJARIA / SOMANY/ Equivalent @ Rs.100/Sft. Vitrified tile flooring 24” x 24” (@Rs.50/- per s.ft) from KAJARIA/ SOMANY/ Equivalent plain colours, for the rest of the flat (bedrooms, kitchen, balconies and passages) with 4” high skirting.
a. Main door
b. Other doors:
One RCC loft will be provided in each bedroom and Kitchen to a width of 2’0”.
7. ELECTRICAL :
Three phase electric supply connection with a separate Manual Three phase changeover switches inside each flat and wiring will be of copper fire retardant cables concealed in PVC conduits. MINIATURE CIRCUIT BREAKERS & RCCB (Residual Current Circuit Breaker) will be provided Switches will be Modular Type mounted on metal boxes from Legrand/ EQUIVALENT. Provision for Split A/C in all bedrooms and living room. TV points will be provided in Living and master bedroom. Telephone points will be provided in Living and all bedrooms.
8. SANITARY AND PLUMBING

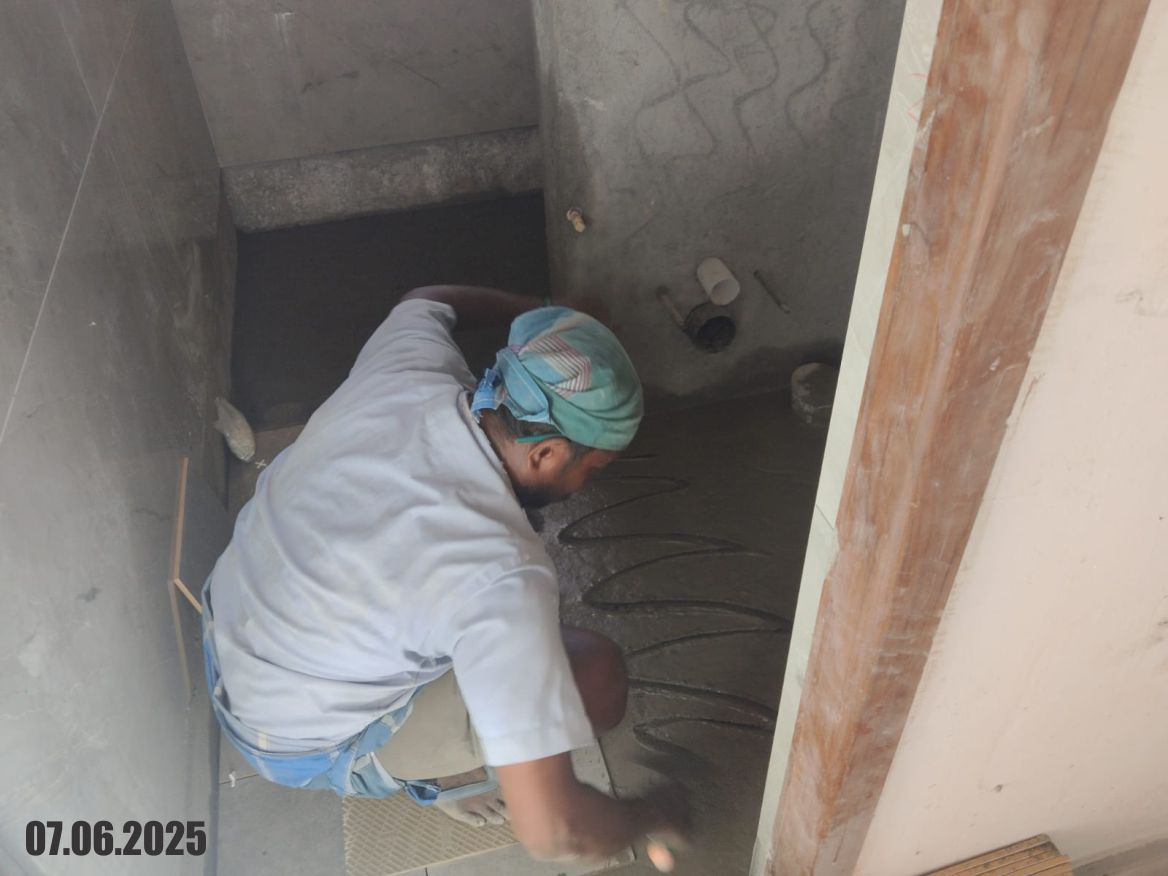

Toilet concealed plumbing line and fittings will be CPVC (Chlorinated Polyvinyl Chloride) and external water line pipes and fittings will be UPVC (Un Plasticized Poly Vinyl Chloride).
9. ANTI TERMITE TREATMENT:
Anti-Termite treatment will be done at Footing, Basement, Brick work, Before Plastering and before laying Paving blocks.
10. WEATHERING COURSE

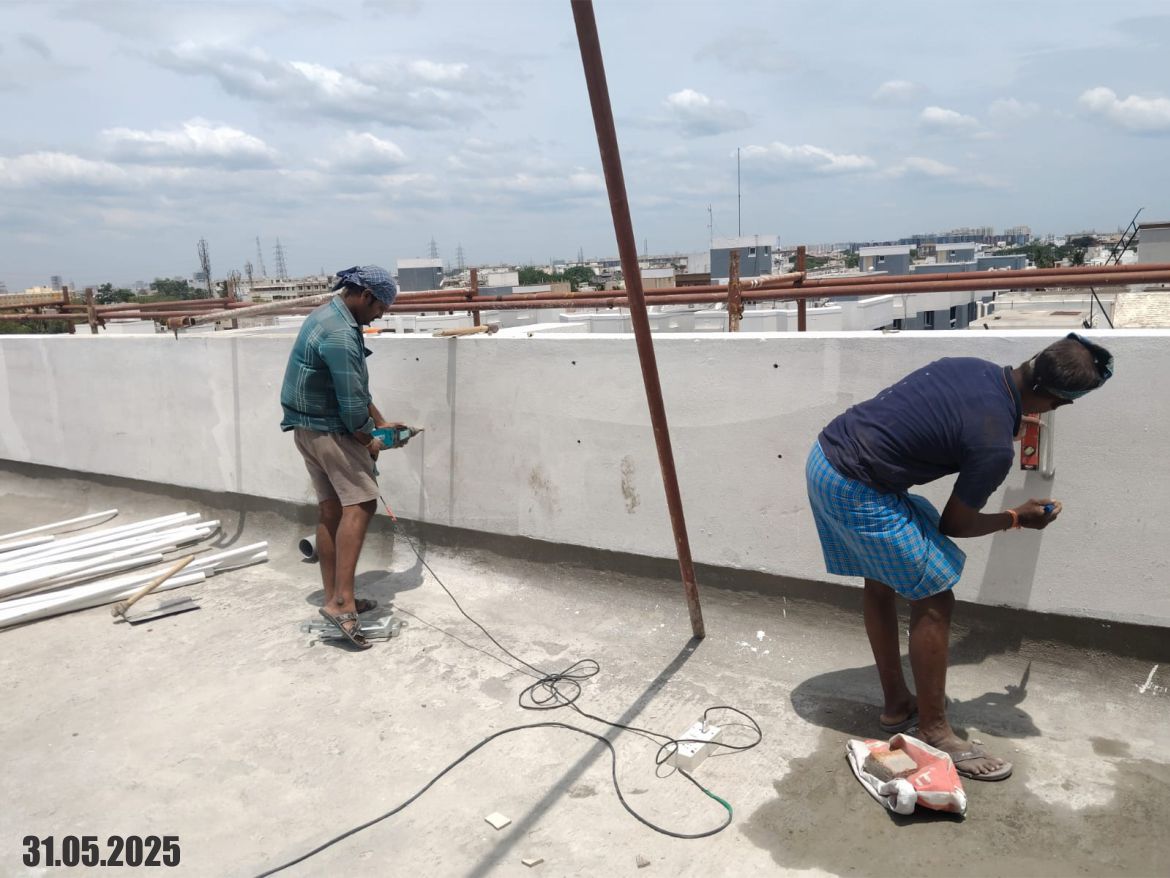

1’0” waterproofing treatment done in the joint between terrace floor slab and parapet wall and this portion is packed with chips to safeguard the waterproof.

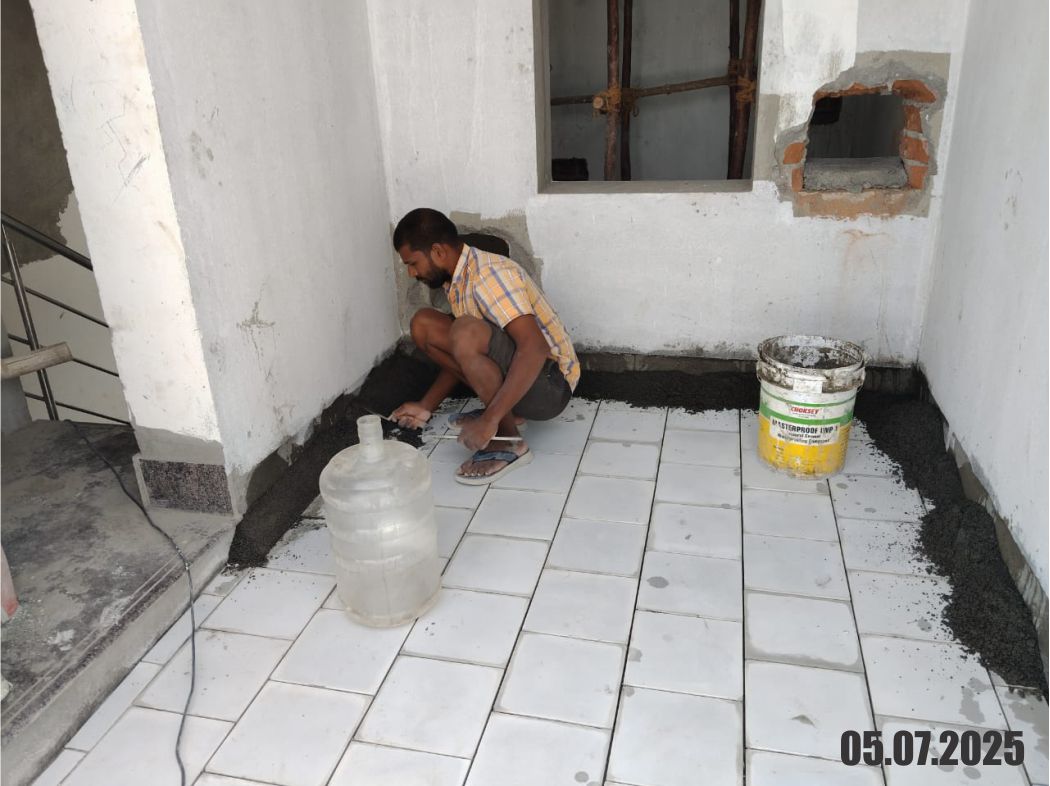

Terrace RCC surface will be thoroughly cleaned and baby chips screed will be laid form required slope. Cement mortar with ad mixture will be laid to fix the thermal insulation tile with spacers. The space between the tile will be grouted with water proofing compound. . INSULLA TILE will be provided in terracefloor over Grano flooring by using 5 mm thick chips.
Abundant landscaping and green cover will be provided around the building
A Six passenger Auto door MS Lift from ASIAN/ EMPEROR/ EQUIVALENT will be provided.
13. GENERATOR/ POWERBACKUP
Standby Generator with alternator, sound proof enclosure, control panel, change over panel and earthing etc., will be provided, which will support all common area lights, motor, lift and only the light, fans and AC’s inside the apartment
14. ACCESS CONTROL SYSTEM
