Firm's Sankula

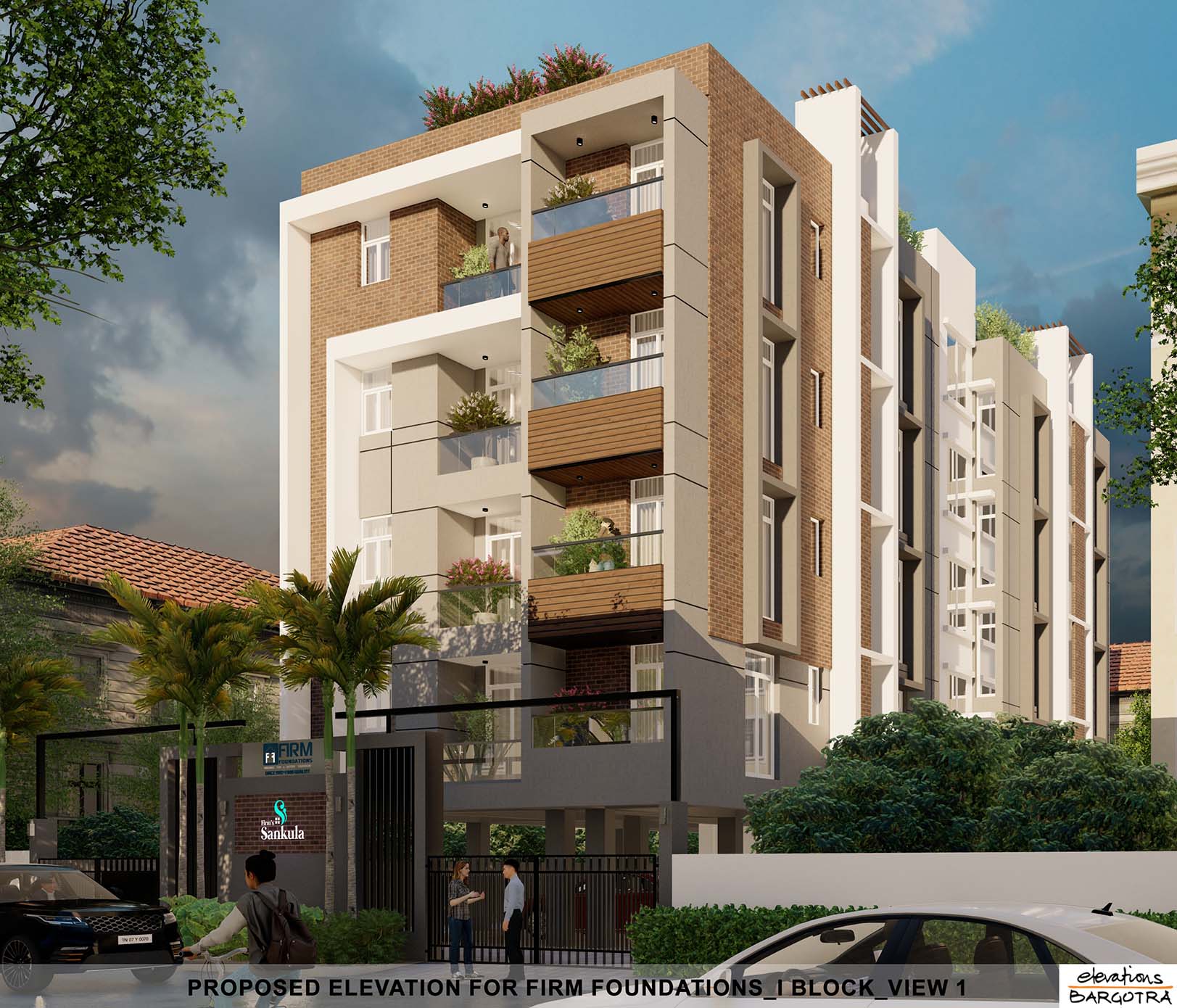

FIRM'S Sankula is another property including construction of Stilt plus four floors Premium Residential apartments with modern amenities. The building will be constructed at PLOT NO.1903, DOOR NO.25, I- BLOCK, 38TH STREET, ANNA NAGAR WEST, CHENNAI- 600040

SPECIFICATIONS:

1. STRUCTURE:

R.C.C framed structure with Brick/ cement blocks walls plastered and finished with Two Coats of Cement based Putty, with one coat of primer and two coats of Asian Premium Emulsion. Ceiling surfaces of the apartments will be given one coat of cement paint on the RCC surface and 12mm gypsum board false ceiling with galvanized iron section supports. Joints will be taped with touchup putty and finished with one coat of primer and two coats of White colour Asian Premium Emulsion.



2. FLOORING:

Flooring for the Living/ Dining area alone will be laid with Kajaria/Somany/ 4x2

tiles @ Rs.100/Sft (light colour). Vitrified tile flooring 2’ x 2’ (@Rs.50/- per s.ft from

Kajaria/ Somany plain colours, for the rest of the flat (bedrooms, kitchen, balconies and

passages) with 4” high skirting.



3. KITCHEN

RCC slab with Black galaxy graniteslab (18 mm Thickness) over cooking platform, with

Nirali make Stainless Steel sink (36”x20”) and drain board. 12” x 18” or 12”x 16”

(@Rs.50/- Sft plain colour glazed tiles of KAJARIA/ SOMANY/ SONARA to a height of 2’

above platform will be provided. Shelves with Black Granite slabs will be provided in the

Kitchen. Electrical points for mixie, grinder, microwave, electric chimney, washing

machine, fridge, and exhaust fan will be provided.



4. TOILETS:

Designer toilets with duo- coloured ceramic tiles and glazed tile dado upto roof height for

the walls. Tile sizes will be 12” x 18”/ 12’ x 24”from KAJARIA/ SOMANY@Rs.50/Sft.

Plain ceramic antiskid tile flooring of size 12” x 12” (@ Rs.40/Sft) from KAJARIA/

SOMANY will be provided. A towel rod and 12” glass corner soap tray will be provided in

each toilet.



5. JOINERY

a. Main door: First Quality AfricanTeak both frame and shutters (Panel door) Polished both sides with melamine spray.

b. Other doors: will be deep-moulded compressed wood fibre raised panel doors, strengthened with pre-selected kiln dried rails and stiles, with a grain effect etched in the panel with first quality teak frames, painted on both sides.Toilet Doors will be Kassa smart ABS  pre painted doors.

c. Windows: All windows will be of UPVC (Un plasticized Poly vinyl chloride)   with 5mm glass panels and required accessories for locking with Bright bar grills embedded in the wall.

d. Ventilator: Toilet ventilators will be with UPVC louvers with inbuilt provision for exhaust fan.

Godrej Locks will be provided for all bedroom doors and main door.



6.One RCC loftwill be provided in each bedroom and Kitchen.



7. ELECTRICAL :

Three phase electric supply connection with a separate Manual Three phase

changeoverswitches inside each flat and wiring will be of copper fire retardant cables

concealed in PVC conduits. MINIATURE CIRCUIT BREAKERS &RCCB  will be

provided and switches will be  Legrand model mounted on metal boxes. Split A/C

provision in all bedrooms and living room. TV points will be provided in the living room

and all bedrooms and Telephone points will be provided in Living and all bedrooms.



8. SANITARY AND PLUMBING

Toilet concealed plumbing lines and fittings will be CPVC (Chlorinated Polyvinyl

Chloride) and external water line pipes and fittings will be UPVC (Un Plasticized Poly

Vinyl Chloride Cascade wall mounted NXT closet/ KOHLER /PARRYWARE/ JAQUAR

closets with Concealedtanks provided in all toilets with health faucets. Taps and other

fittings –KOHLER make CP fittings. Each toilet shall be provided with one water closet,

one wash basin, one  divertor, shower rose, one health faucet, pillar cock & angle valve

for wash basin and 20 mm concealed stop cock.



9. WATER TANK

Water tank for metro water and borewell water shall be provided, in masonry or RCC.



10. UNDERGROUND SUMP

12000 litres capacity under ground sump shall be constructed for storing metro water.



11. CHEMICAL TREATMENT(Water Proofing treatment)

For toilets and mother terrace.



12. ANTI TERMITE TREATMENTwill be done in the required stages.



13. WEATHERING COURSE

1’0” waterproofing treatment done in the joint between terrace floor slab and parapet

walland this portion is packed with chips to safeguard the waterproof. Proper

weathering care shall be done with grano flooring with INSULLATILES and pointing will

be done with water proofing chemical to reduce heat.



14. LANDSCAPING

Plants will be provided around the building



15. A Six passenger Auto door (V3F) MS Lift from EMPEROR with Auto rescue device will be providedupto Terrace.



16. GENERATOR standby Generator from Kirloskar with alternator, sound proof enclosure, control panel, change over panel and earthing etc., will be provided to support lift, common area lights, Mono bloc and jet pumps and lights and fan points only inside the flats.

17.Access Control systemwith priority cards will be provided.Wooden door at the entrance near staircase will be provided.



18.Provision for piped gas in the ground floor will be provided



19. COMMON POINTS

  • Adequate light points in stairs, Terrace, compound walls, points will be provided.
  • SS Handrails will be provided for the common staircase.
  • EB and phones cables from the road to the mains inside the building will be laid through PVC pipes.
  • Compound walls upto 5’ from finished floor level at required places with gate pillars and Two gates will be provided.
  • Name board will be provided in the car park area.
  • Seating arrangements will be provided in the car park area and terrace.
  • A terrace party area with wash basin will be provided.
  • Pandal rings will be provided in the terrace.
  • Setbacks and carpark will be finished with interlocking designer paving blocks.
  • Rain water Harvesting shall be done.
  • Separate Servant toilet and Servant room will be provided in the Stilt floor.
  • Elegant elevationfeatures will be provided.
  • Stairways and landing flooring will be done with granite.
  • Granite slab will be provided in window sill and balcony sill.
  • CCTV Cameras will be provided in the common areas.
  • Electrical point will be provided in the Carpark area for electric car for each flat.

Stilt Floor

https://firmfoundations.in/projects/floorplans/thumbnails/16485482083Sankula__Stilt.jpg

Typical Floor

https://firmfoundations.in/projects/floorplans/thumbnails/16485482303Sankula_Typical.jpg

PLOT NO.1903, DOOR NO.25, I- BLOCK, 38TH STREET, ANNA NAGAR WEST, CHENNAI- 600040

https://firmfoundations.in/projects/location/thumbnails/16485480591Loc_I.jpg
FLOOR FLAT AREA ( IN SQ. FEET) AVAILABILITY
First Floor Flat A 1535
First Floor Flat B 1275
Second Floor Flat A 1535
Second Floor Flat B 1275
Third Floor Flat A 1535
Third Floor Flat B 1275
Fourth Floor Flat A 1535
Fourth Floor Flat B 1275
PAYMENT SCHEDULE
At the time of BOOKING 15%
At the time of REGISTRATION 15%
On completion of BASEMENT 15%
On completion of GROUND FLOOR ROOF 7%
On completion of FIRST FLOOR ROOF 7%
On completion of SECOND FLOOR ROOF 7%
On completion of THIRD FLOOR ROOF 7%
On completion of FOURTH FLOOR ROOF 7%
On completion of BRICK WORK of your flat 7%
On completion of INTERNAL PLASTERING in your flat 5%
On completion of TILE LAYING in your flat 5%
On HANDING OVER POSSESSION 3%
